Integral Blade String&Nearbit Stabilizer
Feachtures
One-piece construction, all Integral stabilizers are manufactured from a single piece of steel forging containing material properties. This ensures a strong, robust design that is properly paired with the adjacent drilling strings.
Enhanced Wellhole Stability to minimize Borehole Deviation and Prevent Wellhole Irregularities.
Reduced drilling string wear and prevent sticking to extend the using life or drilling strings and prevent any risks
Material:
●AISI 4145H/4145H MOD
●Non-magnetic
●AISI 4140/4142/4330V
Type:

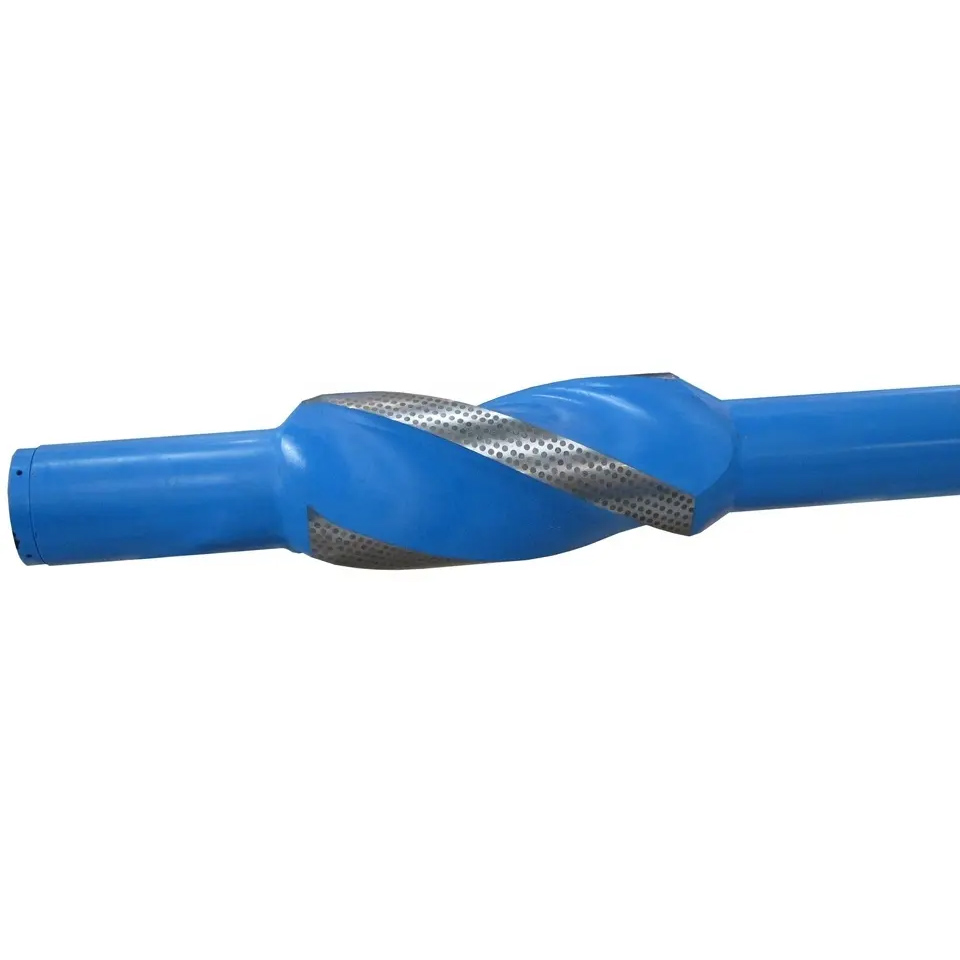

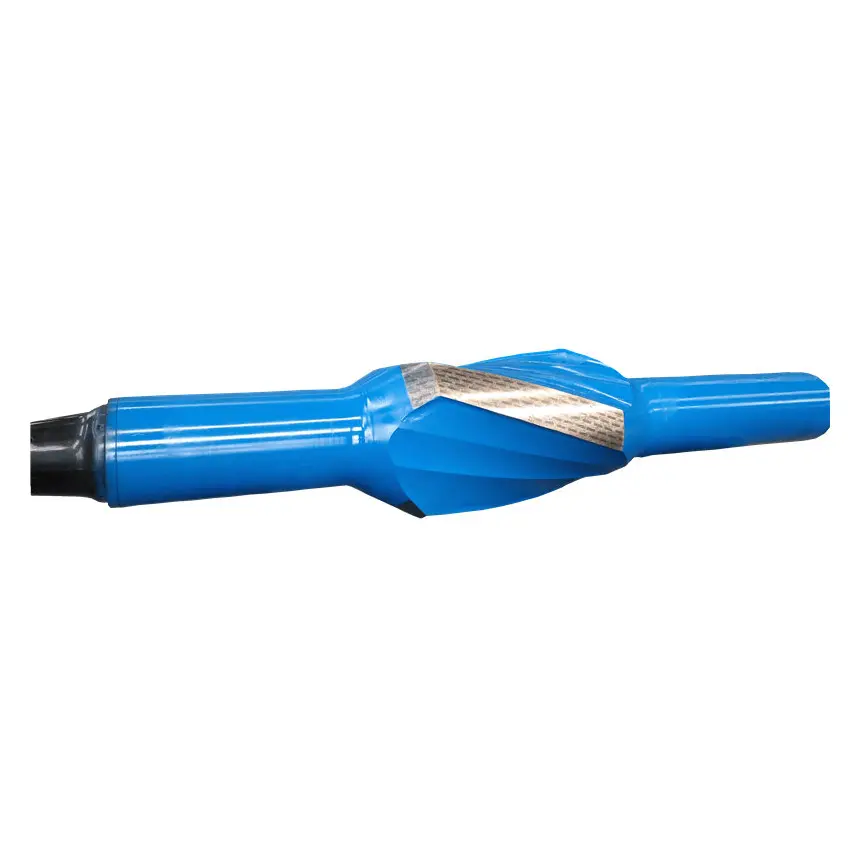

●IB String Stabilizer
●IB Nearbit Stabilizer
Hardfacing:
●HF1000
●HF2000
●HF3000
●HF4000
●HF5000
Specification
Connection |
Hole Size |
Fishing Neck |
ID |
OAL |
Fishing Neck length |
Blade Length |
Blade Width |
8-5/8 REG Box x pin |
42" |
11" |
3" |
118-130" |
32" |
24" |
6.5" |
7-5/8 REG Box x pin |
36" |
9.5" |
3" |
110-120" |
30" |
22" |
6.5" |
7-5/8 REG Box x pin |
28" |
9.5" |
3" |
100-110" |
30" |
20" |
4" |
7-5/8 REG Box x pin |
26" |
9.5" |
3" |
100-110" |
30" |
20" |
4" |
7-5/8 REG Box x pin |
24" |
9.5" |
3" |
100-110" |
30" |
20" |
4" |
7-5/8 REG Box x pin |
22" |
9.5" |
3" |
100-110" |
30" |
20" |
4" |
7-5/8 REG Box x pin |
17 1/2" |
9.5" |
3" |
90-100" |
30" |
18" |
3.5" |
7-5/8 REG Box x pin |
16" |
9.5" |
3" |
90-100" |
30" |
18" |
3.5" |
6-5/8 REG Box x pin |
12 1/2" |
8" |
2 13/16" |
79-90" |
30" |
18" |
3" |
7-5/8 REG Box x pin |
12 1/4" |
8" |
2 13/16" |
79-90" |
30" |
18" |
3" |
4 1/2 IF Box x pin |
8 1/2" |
6 3/4" |
2 13/16" |
65-72" |
28" |
16" |
2.25" |
3-1/2 IF Box x pin |
6" |
4 3/4" |
2 1/4" |
60-66" |
28" |
16" |
2" |
