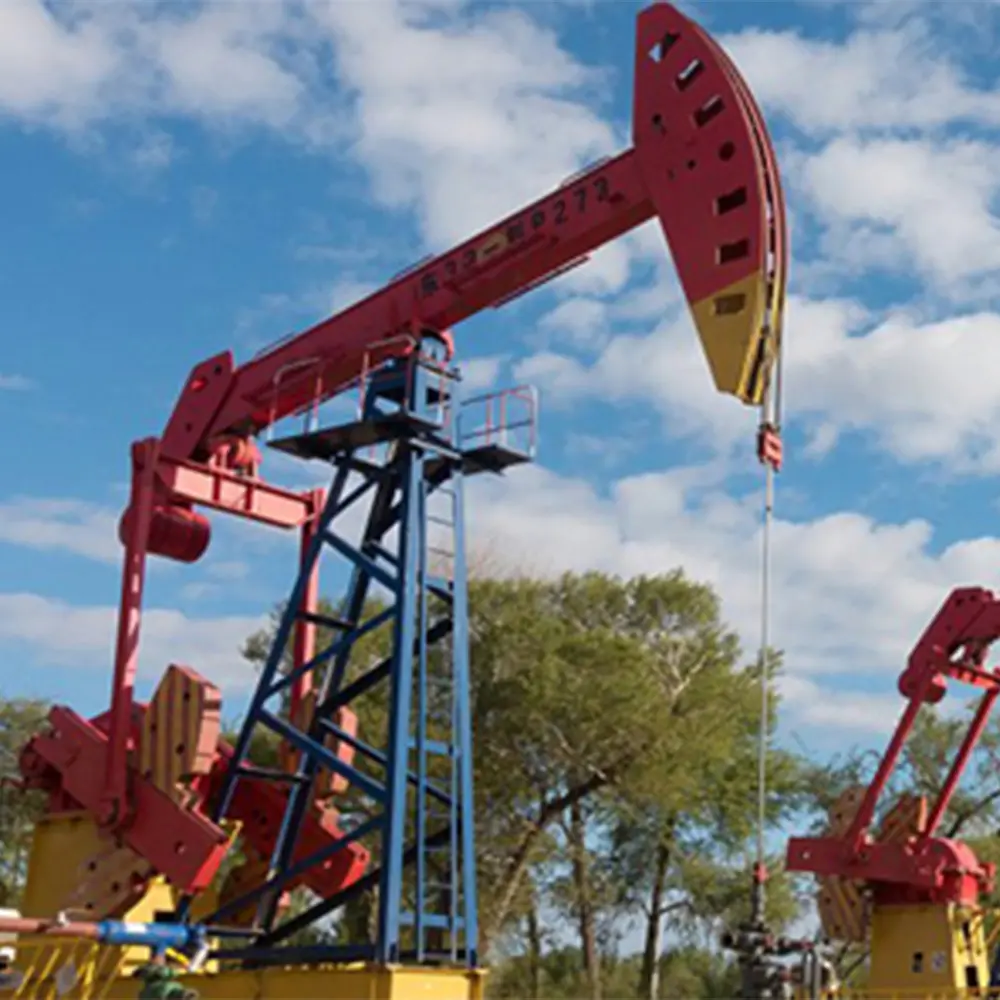

API Certified Pumping Units Manufacturing (1).jpg

API Certified Pumping Units Manufacturing (1a).jpg

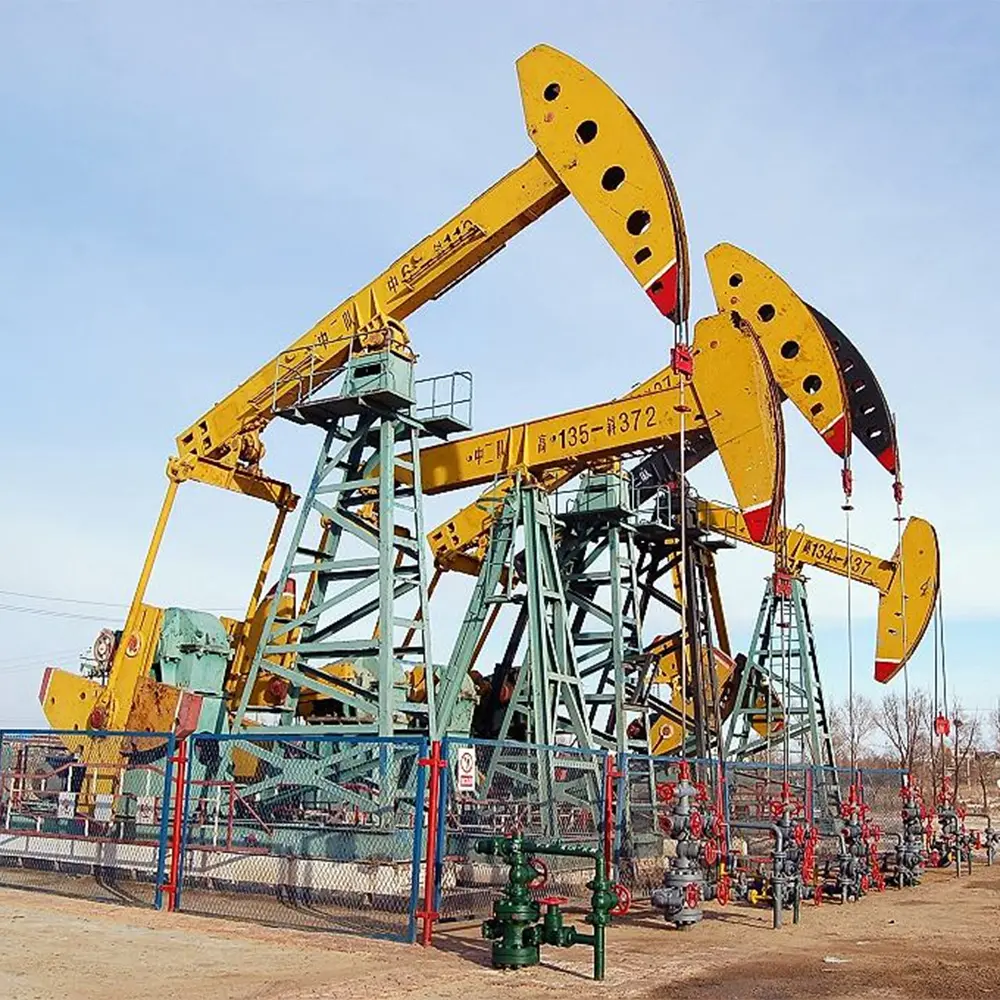

API Certified Pumping Units Manufacturing (2).jpg

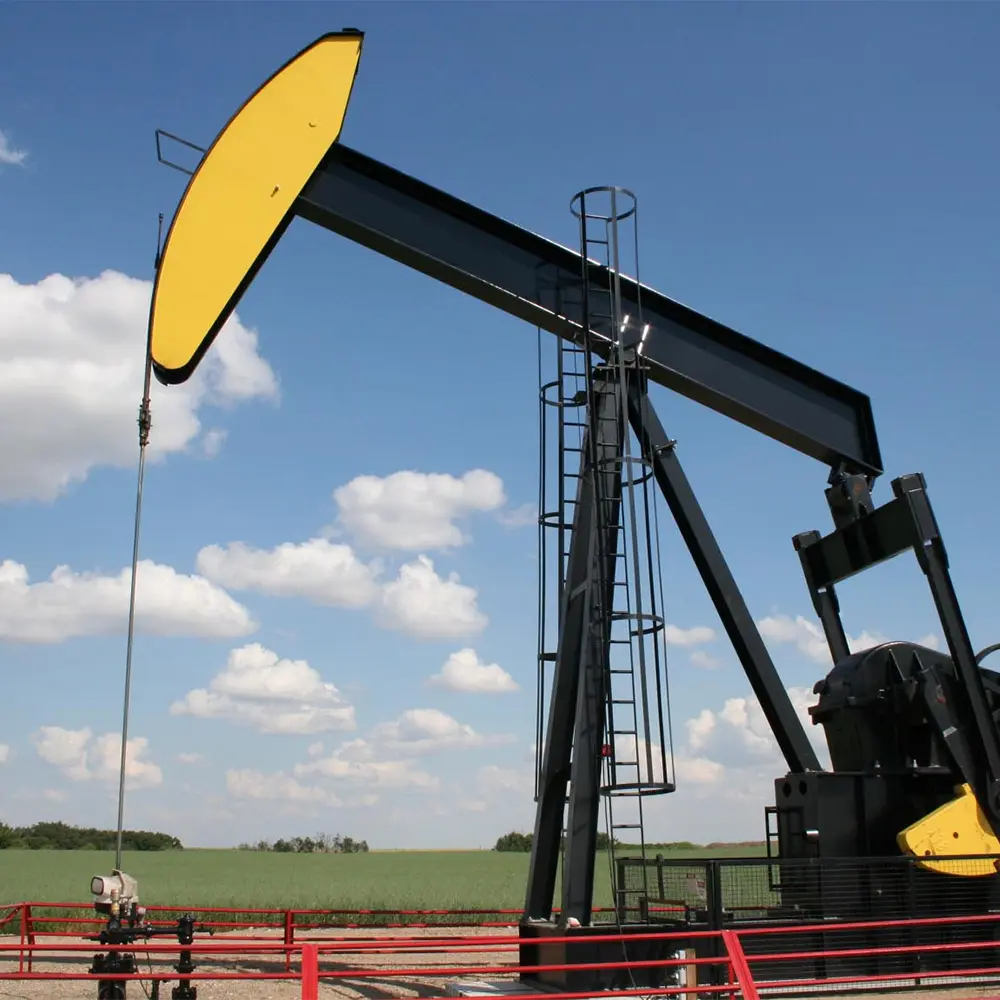

API Certified Pumping Units Manufacturing (3).jpg

API Certified Pumping Units Manufacturing

The pumping unit is a key equipment that drives the sucker rod pump through the ground driving device to extract crude oil from the oil well to the surface.

Engineered as the backbone of sucker rod oil extraction systems, API C-Series pumping units represent the pinnacle of conventional walking beam technology. These ground power systems are precision-engineered to:
- Deliver consistent rod loads ranging from 22 kN to 180 kN (API 11E Class 2-4)
- Operate reliably in harsh onshore environments with 99%+ uptime potential
- Meet the rigorous demands of API Spec 11E, Official API Monogram License.

product Information

The main parts are including: Motor, Reducer box, Crank, Connecting rod, Walking beam, Support frame, Base seat, Brake device,etc.

Type C

Type	Rated Rod Load (lbs)	Stroke (in)	Rated torque of positive speed gearboxes (in.lbs)
C-1824D-427-240	42,700	240、212、196、160	1824,000
C-1280D-365-240	36,500	240、212、196、160	1280,000
C-1280D-305-240	30,500	240、212、196、160	1280,000
C-912D-470-240	47,000	240、212、196、160	912,000
C-912D-427-216	42,700	216、185、155	912,000
C-912D-427-192	42,700	192、165、138	912,000
C-912D-305-192	30,500	192、165、138	912,000
C-912D-365-168	36,500	168、144、121	912,000
C-912D-305-168	30,500	168、144、121	912,000
C-912D-427-144	42,700	144、123、102	912,000
C-640D-305-192	30,500	192、165、138	640,000
C-640D-305-168	30,500	168、144、121	640,000
C-640D-365-144	36,500	144、123、102	640,000
C-640D-305-144	30,500	144、123、102	640,000
C-640D-256-144	25,600	144、123、102	640,000
C-640D-305-120	30,500	120、102、84	640,000
C-456D-305-168	30,500	168、144、121	57,000
C-456D-305-144	30,500	144、123、102	40,000
C-456D-256-144	25,600	144、123、102	57,000
C-456D-365-120	36,500	120、102、84	40,000
C-456D-305-120	30,500	120、102、84	25,000
C-456D-256-120	25,600	120、102、84	25,000
C-320D-256-144	25,600	144、123、102	320,000
C-320D-256-120	25,600	120、102、84	320,000
C-320D-213-120	21,300	120、102、84	320,000
C-320D-305-100	30,500	100、85、70	320,000
C-320D-256-100	25,600	100、85、70	320,000
C-320D-213-86	21,300	86、71、56	320,000
C-228D-213-120	21,300	120、102、84	228,000
C-228D-173-100	17,300	100、86、72	228,000
C-228D-246-86	24,600	86、71、56	228,000
C-228D-213-86	21,300	86、71、56	228,000
C-228D-200-74	20,000	74、64、54	228,000
C-228D-173-74	17,300	74、64、54	228,000
C-160D-173-86	17,300	86、74、62	160,000
C-160D-200-74	20,000	74、64、54	160,000
C-160D-173-74	17,300	74、64、54	160,000
C-160D-143-74	14,300	74、64、54	160,000
C-160D-173-64	17,300	64、54、44	160,000
C-114D-119-86	11,900	86、72、59	114,000
C-114D-143-74	14,300	74、62、51	114,000
C-114D-173-64	17,300	64、54、44	114,000
C-114D-143-64	14,300	64、52、40	114,000
C-114D-133-54	13,300	54、45、36	114,000
C-80D-119-64	11,900	64、53、42	80,000
C-80D-133-54	13,300	54、45、36	80,000
C-80D-119-54	11,900	54、45、36	80,000
C-80D-133-48	13,300	48、40、32	80,000
C-80D-109-48	10,900	48、37、25	80,000
C-57D-76-54	7,600	54、41、28	57,000
C-57D-109-48	10,900	48、37、25	57,000
C-57D-95-48	9,500	48、37、25	57,000
C-57D-89-42	8,900	42、33、23	57,000
C-57D-76-42	7,600	42、33、23	57,000
C-40D-76-48	7,600	48、37、27	40,000
C-40D-89-42	8,900	42、33、23	40,000
C-40D-76-42	7,600	42、33、23	40,000
C-40D-89-36	8,900	36、28、20	40,000
C-25D-67-36	6,700	36、28、20	25,000
C-25D-56-36	5,600	36、28、20	25,000
C-25D-53-30	5,300	30、20	25,000

Type B

S.N	Type	Rated Rod Load (lb)	Stroke (in)	Rated torque of positive speed gearboxes (in.lb)
1	B-80D-119-64	11,900	64、54	80,000
2	B-80D-76-64	7,600	64、54	80,000
3	B-80D-133-54	13,300	54、41	80,000
4	B-80-119-54	11,900	54、41	80,000
5	B-80D-76-54	7,600	54、41	80,000
6	B-80D-133-48	13,300	48、35	80,000
7	B-80D-109-48	10,900	48、35	80,000
8	B-57D-109-54	10,900	54、41	57,000
9	B-57D-89-54	8,900	54、41	57,000
10	B-57D-76-54	7,600	54、41	57,000
11	B-57D-109-48	10,900	48、35	57,000
12	B-57D-95-48	9,500	48、35	57,000
13	B-57D-89-48	8,900	48、35	57,000
14	B-57D-89-42	8,900	42、32	57,000
15	B-40D-89-48	8,900	48、35	40,000
16	B-57D-76-42	7,600	42/32	57,000
17	B-40D-76-42	7,600	42、29	40,000
18	B-25D-67-36	6,700	36、27	25,000
19	B-25D-53-30	5,300	30/23	25,000
20	B-16D-53-30	5,300	30、23	16,000
