API 8A/8C Certified Elevator Links
Product Types & Design Standards
|
Link Type |
Manufacturing Standard |
|

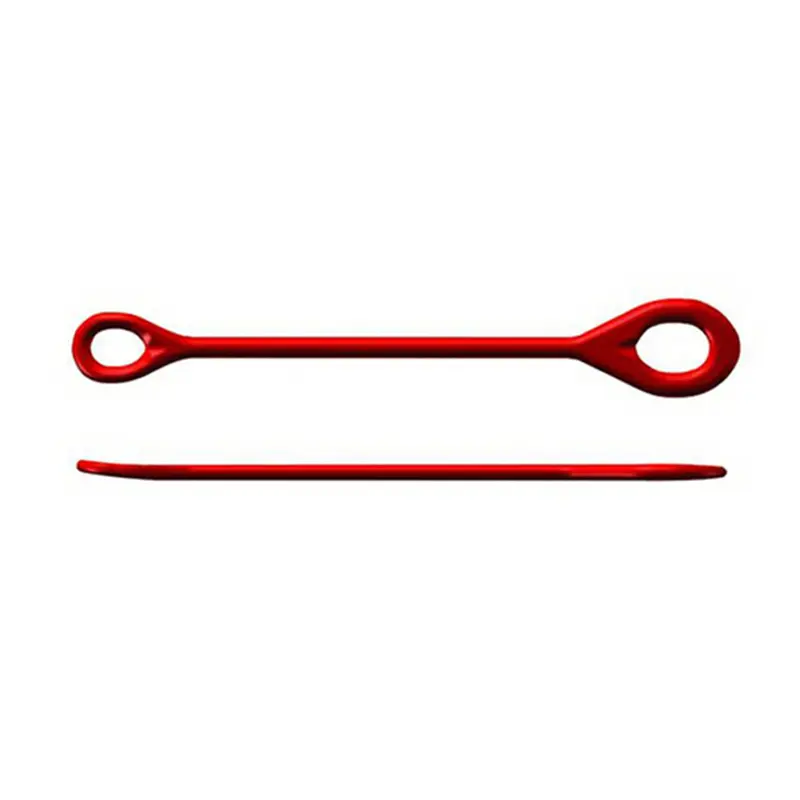

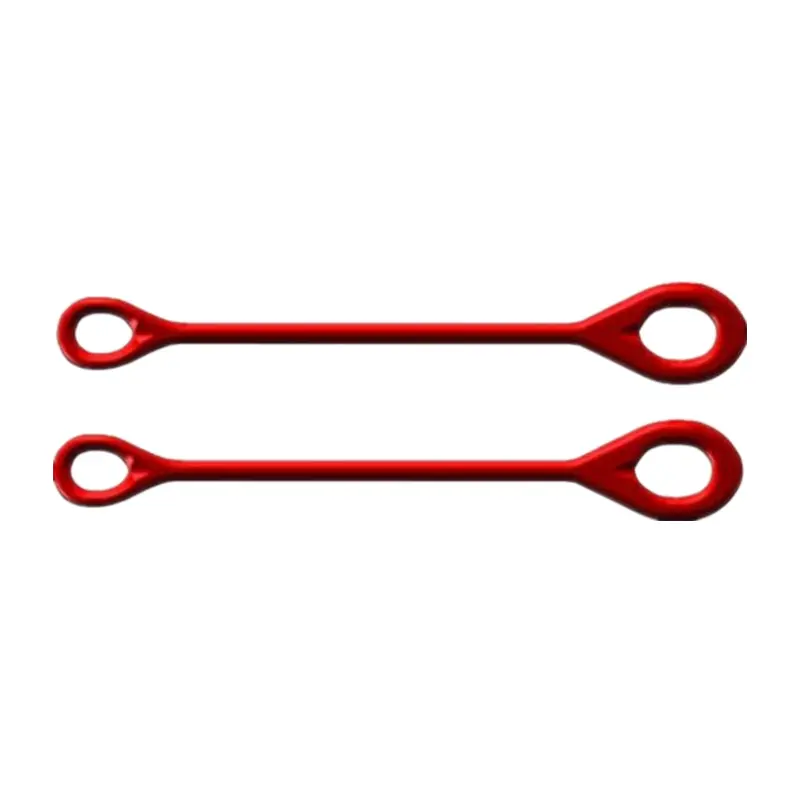

Weldless Links |
API 8A/8C |
|

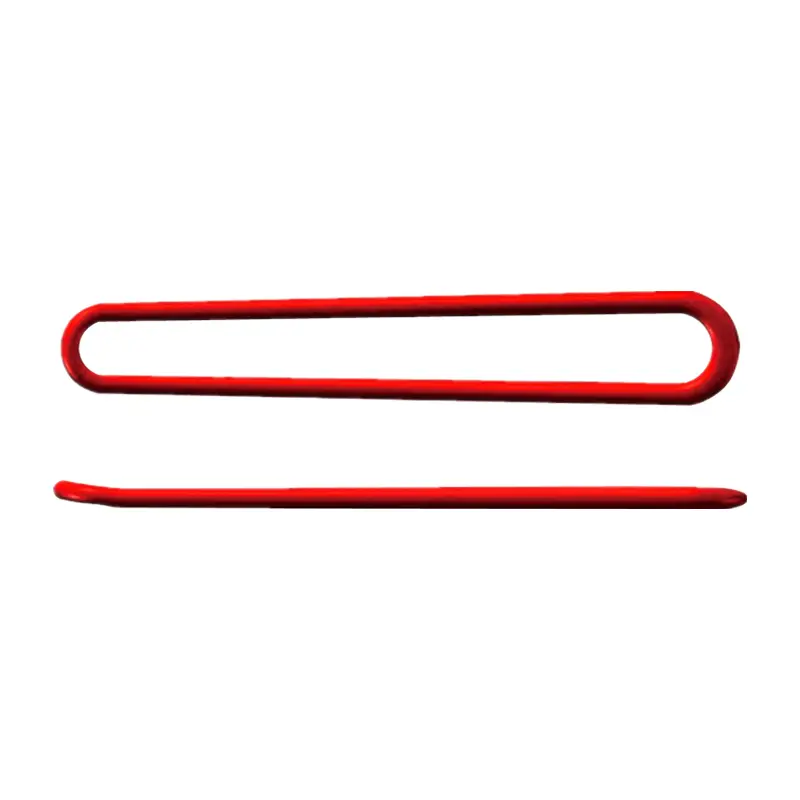

Perfected Links |
API 8A/8C |
Links Specification
|
Model |
Spec |
Rated Capacity |
Length |
|
Weldless Link |
DH150 |
150 short ton |
1800 mm |
|
DH250 |
250 short ton |
2700 mm |
|
|
DH350 |
350 short ton |
3300 mm |
|
|
DH500 |
500 short ton |
3600 mm |
|
|
Perfection Link |
SH75 |
75 short ton |
1500 mm |
|
SH100 |
100 short ton |
1500 mm |
|
|
SH150 |
150 short ton |
1700 mm |
Product Specifications
1.Material & Processing: Forged from a single ingot with a weldless design and then heat-treated to meet the full requirements of API Spec 8C.
2.Quality Assurance: 100% magnetic particle inspection (MPI) for surface cracks and ultrasonic testing (UT) to detect internal flaws.
3.Load Testing: Proof-tested at 2 x rated load for 30 minutes in accordance with API 8C Section 6.2.
4.Deformation Tolerance: Permanent deformation does not exceed 0.1% of eye diameter.
Product Features:
1.Wide Load Range: Available in rated capacities from 75 tons to 500 tons, covering a broad range of hoisting requirements.
2.Standards Compliance: All elevator links fully comply with API Spec 8C standards and undergo rigorous certification testing.
3.Full NDT Coverage: Each unit is subject to MPI and UT as part of the standard quality control process.
4.Customization Options: Customized link dimensions and load ratings can be manufactured according to customer specifications.
5.Traceability: Each link in a pair is marked with a unique serial number to ensure full product traceability.
6.Compatibility: Fully compatible with all standard API top drive systems and hook assemblies.
Operational Results from a German Rig Operator
“On a rig in Germany, Takelo’s weldless elevator links helped reduce hoisting downtime by 38% over a five-year period, with zero inspection failures, demonstrating outstanding reliability under continuous heavy-duty use.”
