API 8C Elevator Manufacturing
Product Portfolio
We offer four core elevator types, all compliant with API Spec 8A/8C:
- Center Latch Elevators
- Side Door Elevators
- Single Joint Elevators
- Slip Type Elevators
Product Features:
100% NDT test for critical parts for elevator
Hydraulic test according to API 8C.
Load capacity from 150ton to 500ton
Easy to operation while drilling, spare parts is available after sales.
Drilling rig efficiency (reducing tripping time by 25%)
ELEVATORS Specification

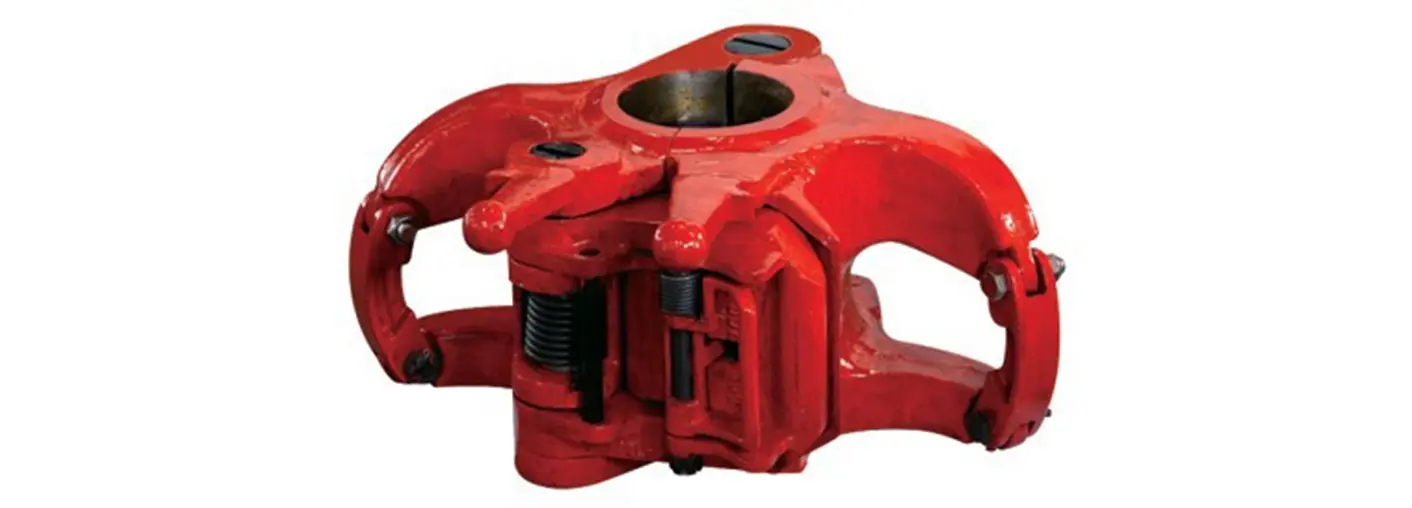

DDZ model is the elevator with 18°degree tape shoulder and center latch type.The Load ranges from 150 tons to 500 tons and the size ranges from 2-3/8″ to 6-5/8″.
|
Type |
Application |
Spec (in) |
Working Load |
|
DDZ |
Drill Pipe |
2 3/8EU-6 5/8IEU |
150/250/350/500t |

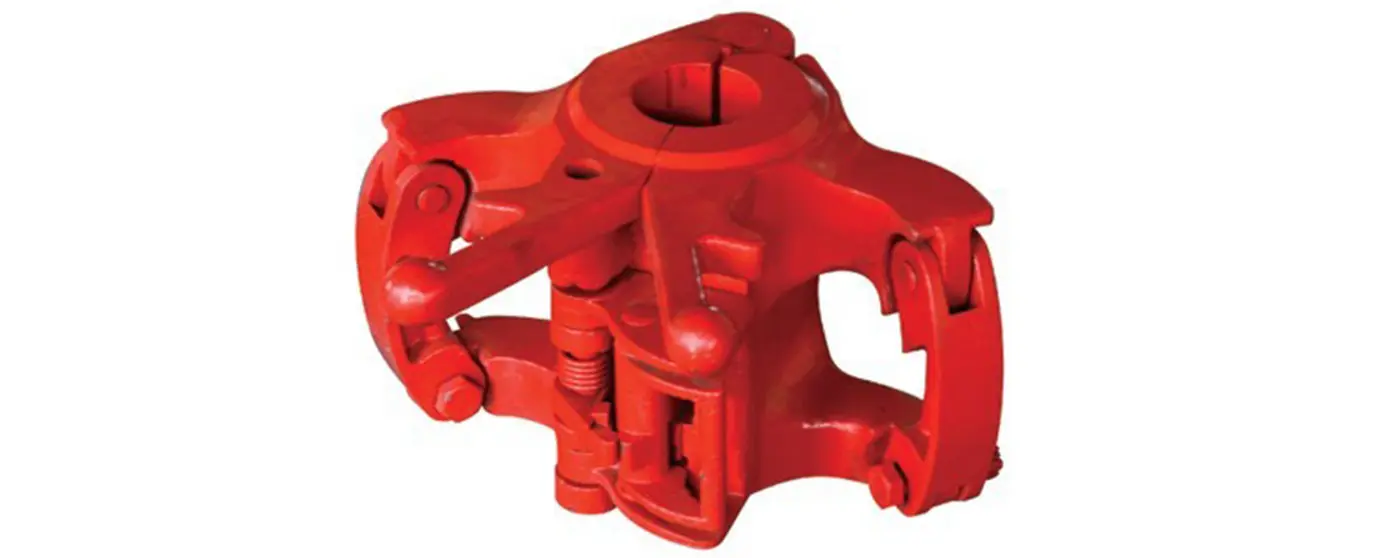

DD model is the elevator with square shoulder and center latch type
|
Type |
Application |
Spec (in) |
Working Load |
|
DD |
Drill Pipe |
2 3/8-5 1/2 |
65/100/125/150t |
|
Casing |
4 1/2-10 3/4 |
100/150t |
|
|
Tubing |
1.05-5 |
35/65/100/125/150t |
|
|
Drill Collar |
2 7/8-11 1/4 |
35/65/125/150t |

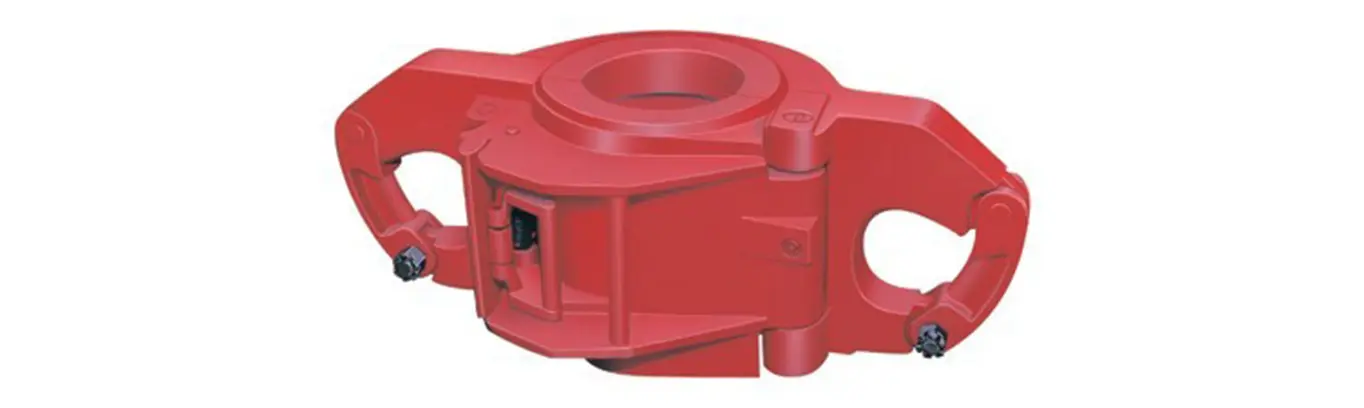

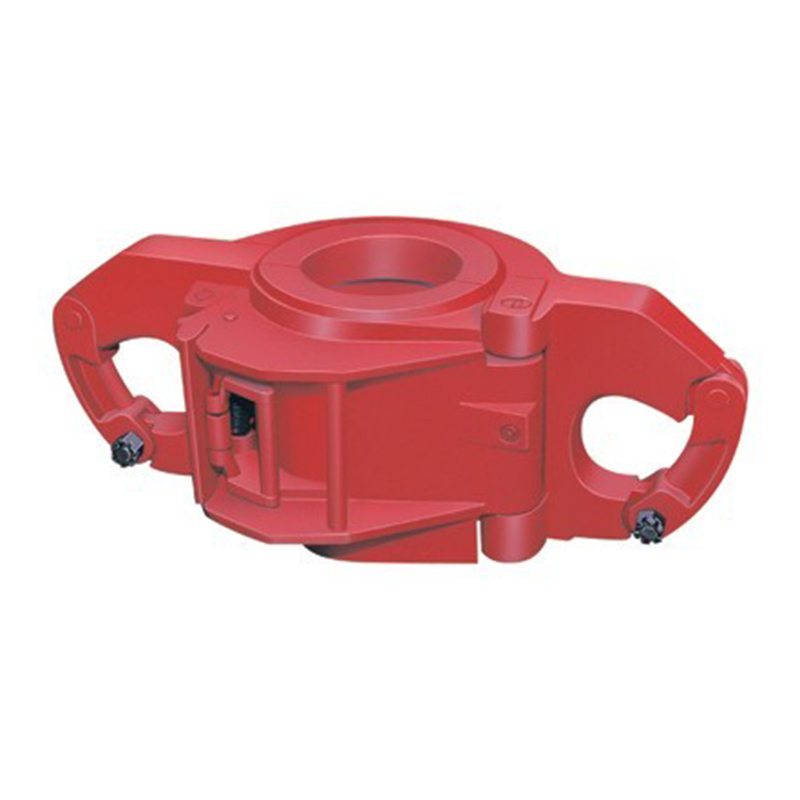

CD model elevator is the elevator with Square tape shoulder and side door typel, the load ranges from 150 tons to 750 tons and the size ranges from 2-3/8″ to 20″.
|
Type |
Application |
Spec (in) |
Working Load |
|
CD |
Multiple |
2 3/8-20 |
100/150/200/250/350/500t/750t |

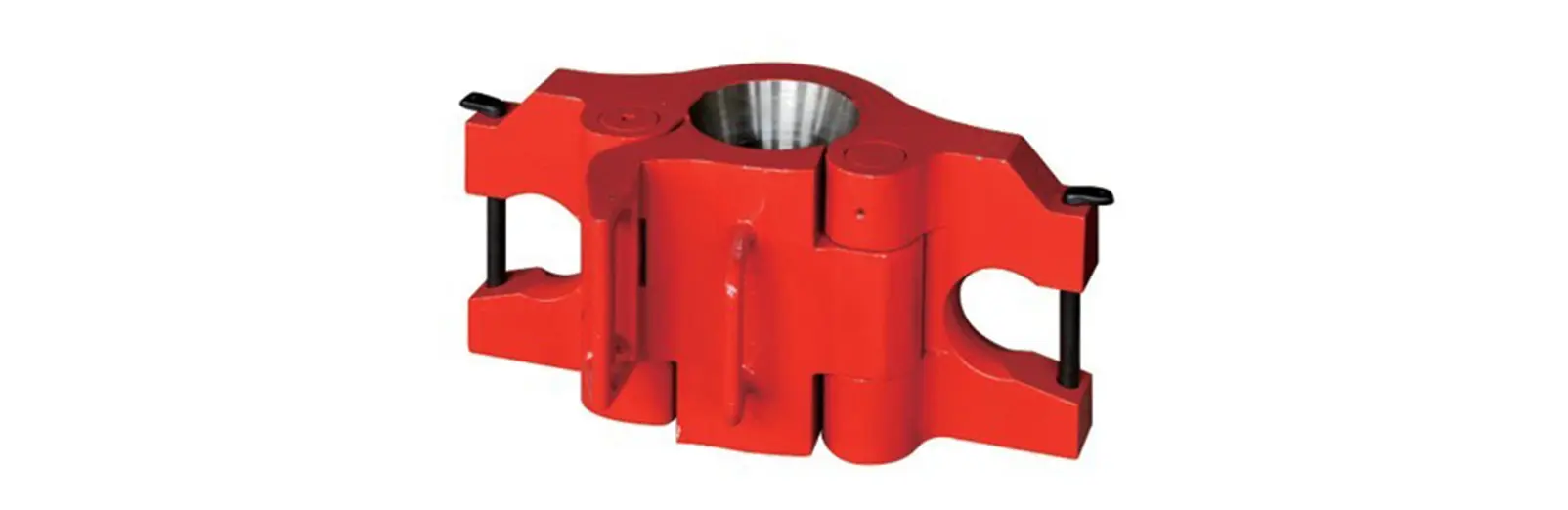

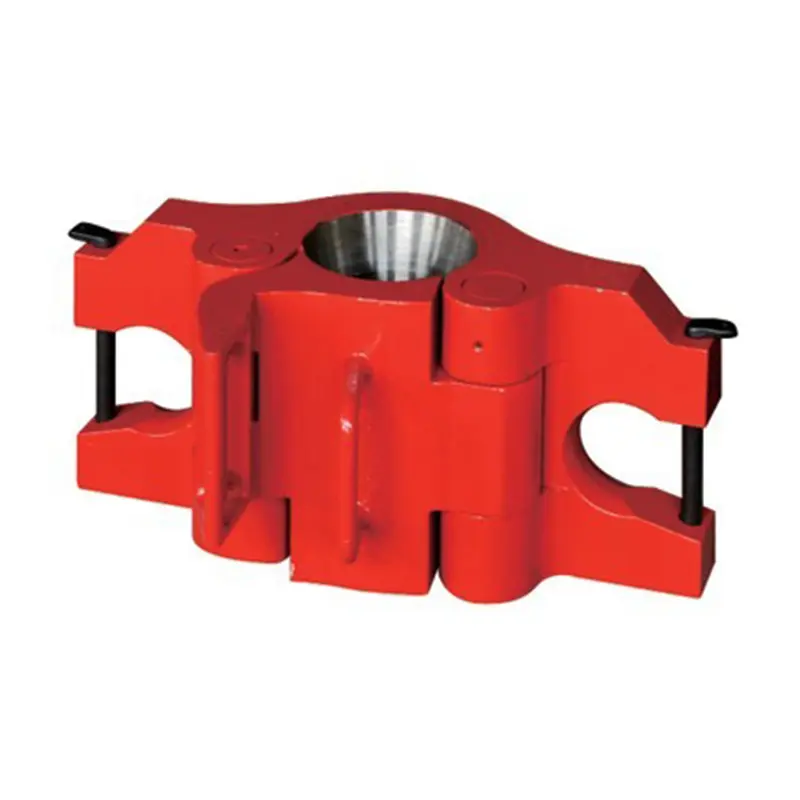

SLX elevators are designed for handling single pipes or working together with the professional tools CRT to move the tubulars.
|
Type |
Application |
Spec (in) |
Working Load |
|
SLX |
Multiple |
2 3/8-30 |
100/150/250/350t |

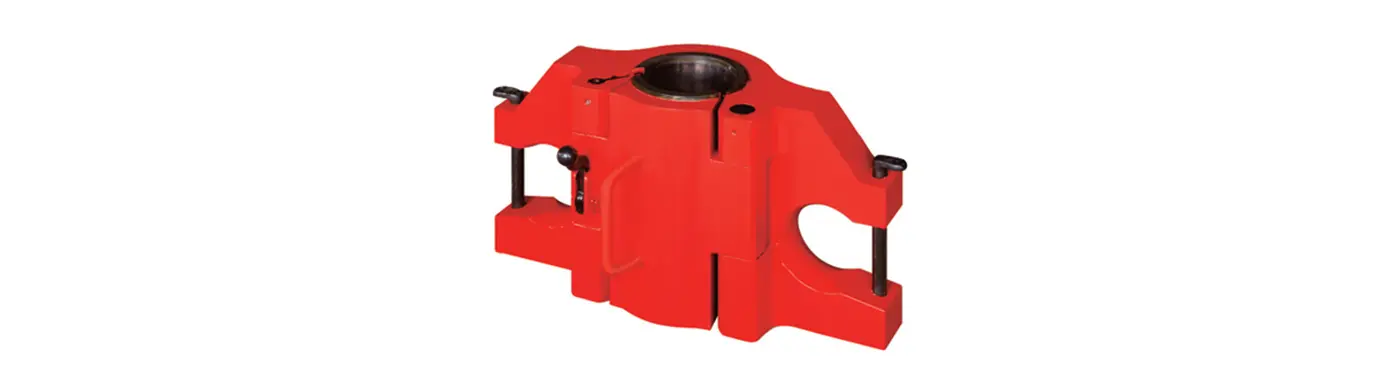

Single Joint Elevators are used for handling single casings or tubings in oil&gas drilling and cementing operation.
|
Type |
Application |
Spec (in) |
Working Load |
|
SJ |
Multiple |
2 3/8-36 |
45/60kN |

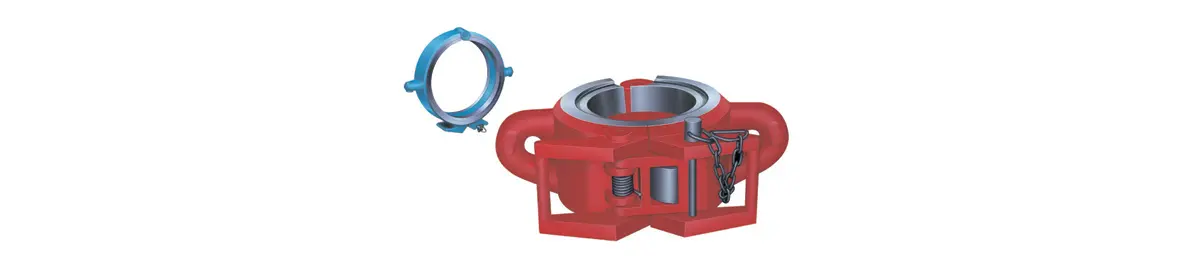

SP Elevator is using for handling single tubings, casings and drill pipes with taper shoulder.
|
Type |
Application |
Spec (in) |
Working Load |
|
SP |
Multiple |
2 3/8-7 5/8 |
27 kN |
