API 7K-Compliant Slip Manufacturing
Product Range for Different Applications

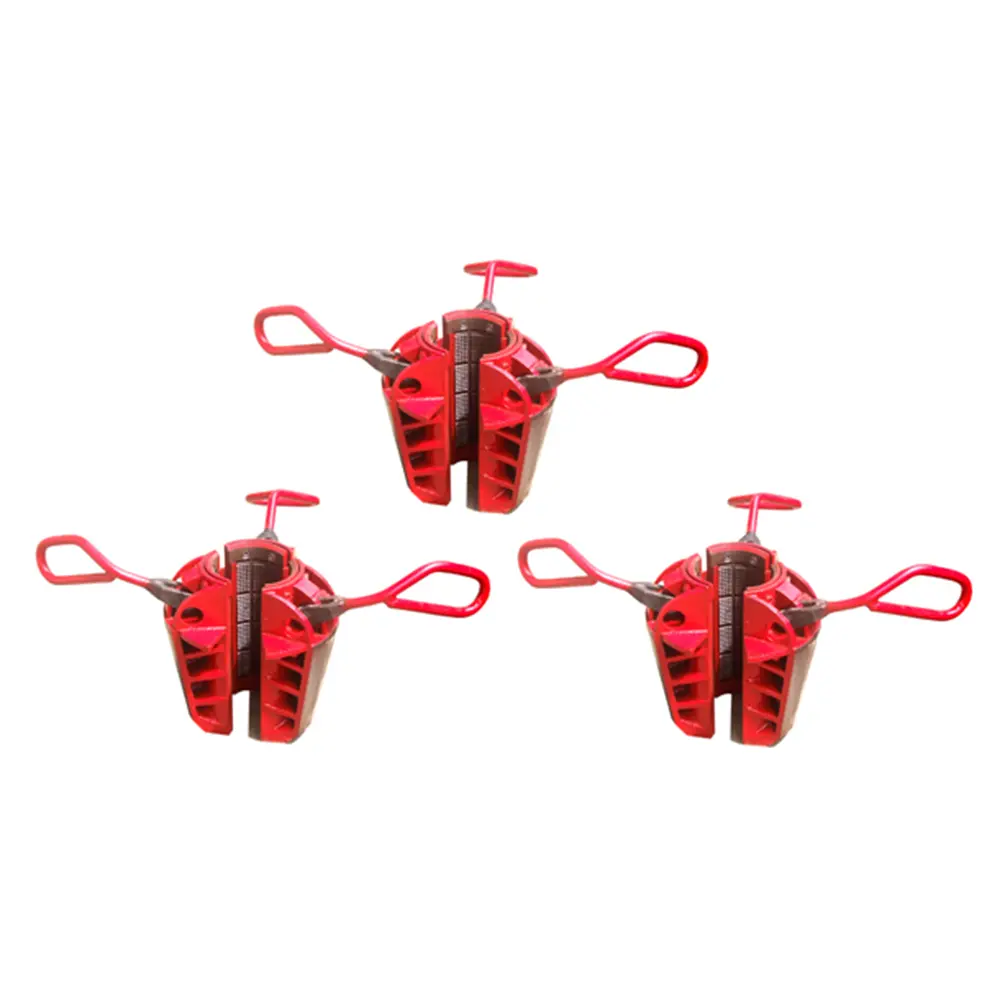

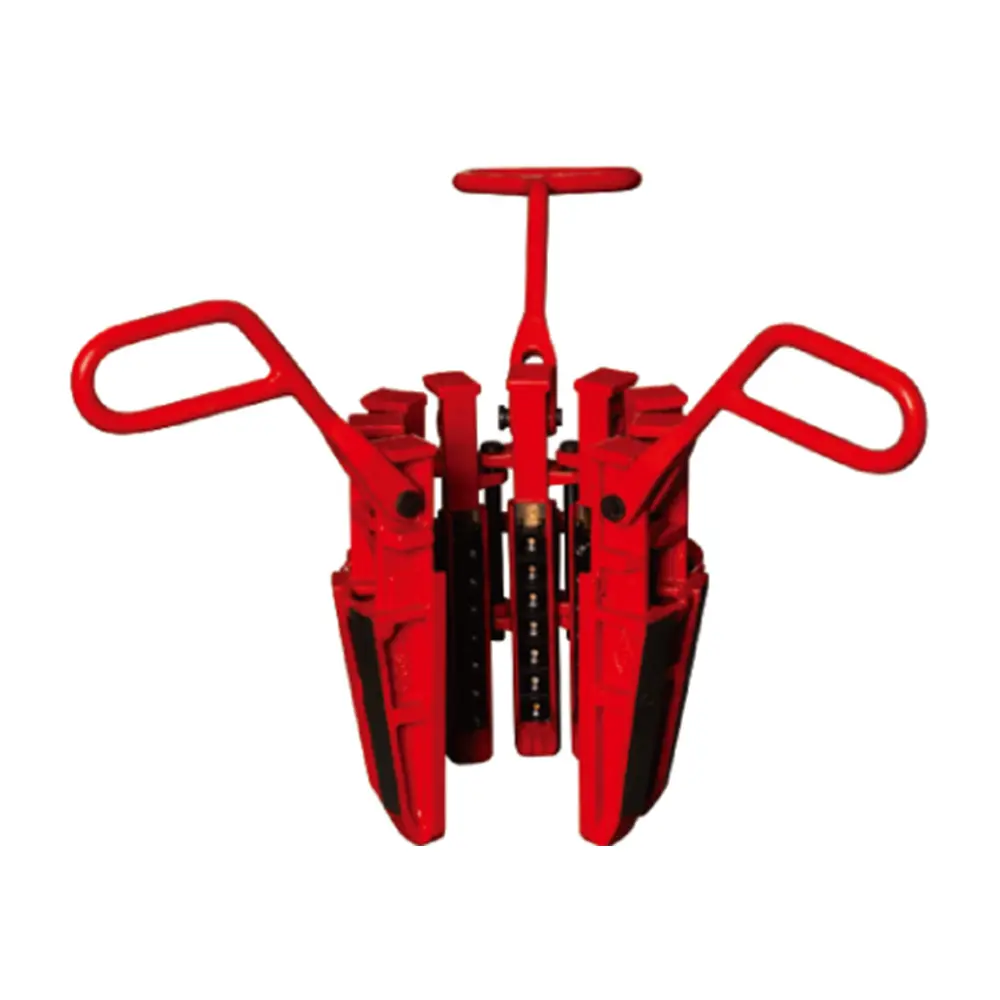

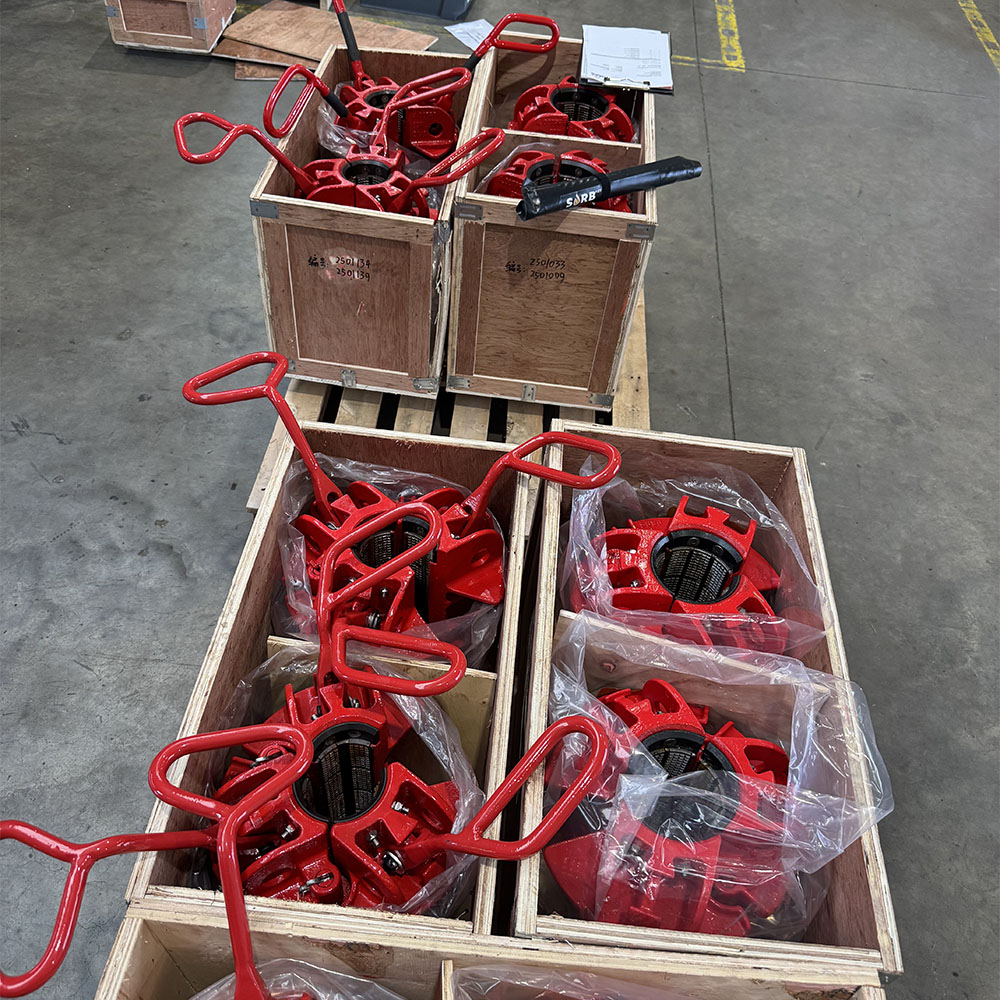

Drill Pipe Slip: Handling tool designed to grip and suspend drill pipe during tripping operations.
Product Features

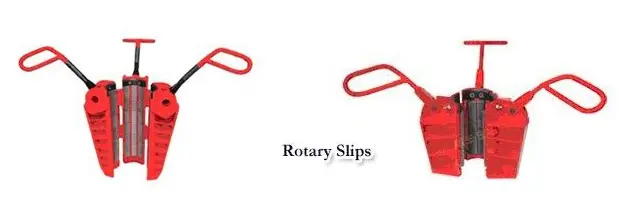

SLIPS Specification
|
Drill Pipe Slips |
|||
|
Type |
Slip Body Size (in) |
Pipe OD (in) |
Rated Load (kN) |
|
SDS |
3 1/2 |
2 3/8-3 1/2 |
675 |
|
4 1/2 |
3 1/2-4 1/2 |
||
|
SDML |
3 1/2 |
2 3/8-3 1/2 |
1125 |
|
4 1/2 |
3 1/2-4 1/2 |
||
|
5 |
4-5 |
||
|
5 1/2 |
4 1/2-5 1/2 |
||
|
SDXL |
4 1/2 |
3 1/2-4 1/2 |
2250 |
|
5 |
4-5 |
||
|
5 1/2 |
4 1/2-5 1/2 |
||
|
Drill Collar Slips |
||
|
Type |
Handling OD (in) |
Insert Bowl No. |
|
DCS-S |
3-4 |
API or No.3 |
|
4-4 7/8 |
||
|
DCS-R |
4 1/2-6 |
|
|
5 1/2-7 |
||
|
DCS-L |
6 3/4-8 1/4 |
|
|
8-9 1/2 |
||
|
8 1/2-10 |
No.2 |
|
|
9 1/4-11 1/4 |
||
|
11-12 3/4 |
No.1 |
|
|
12-14 |
||
|

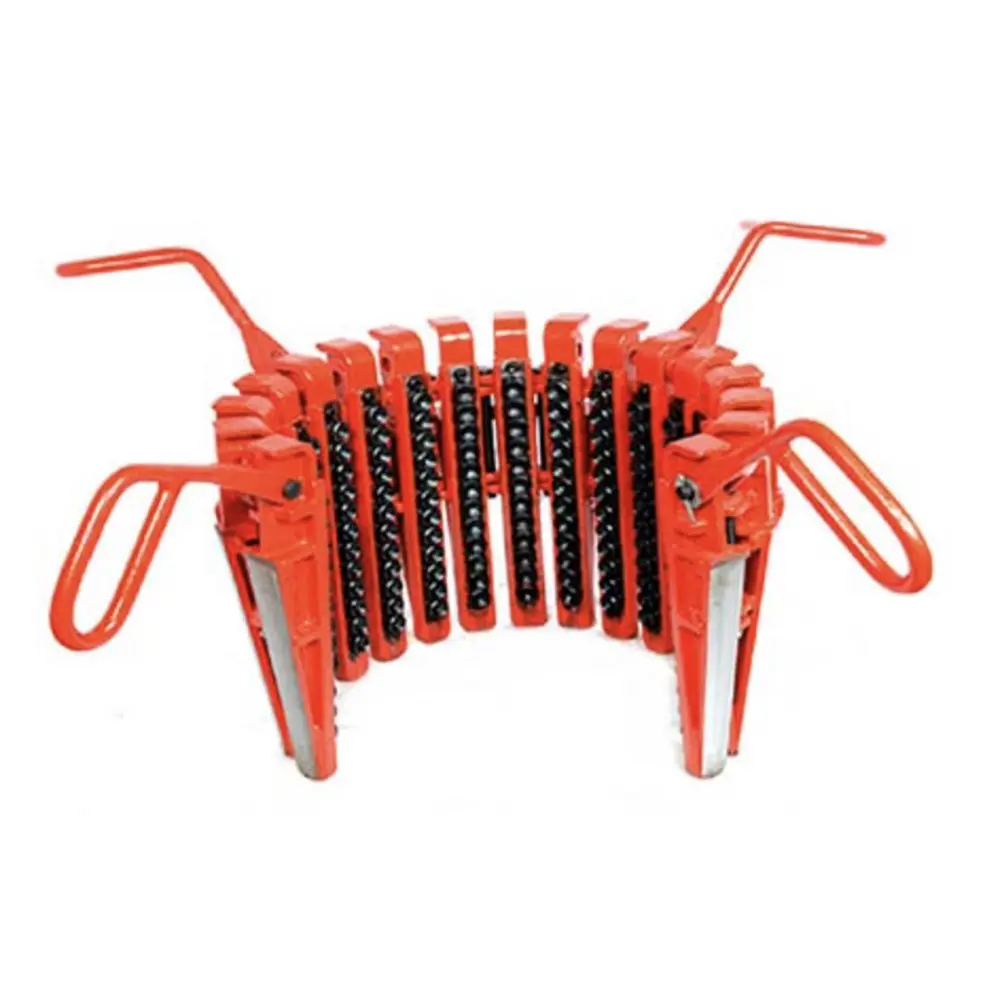

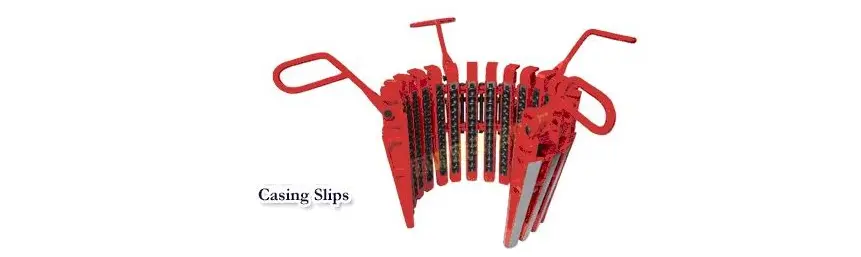

Casing Slips |
||||
|
Casing OD (in) |
4 1/2-8 5/8 |
9 5/8-10 3/4 |
11 3/4-13 3/8 |
16-30 |
|
Insert Bowl No. |
API or No.3 |
No.2 |
No.1 |
Matching Bushing |
|

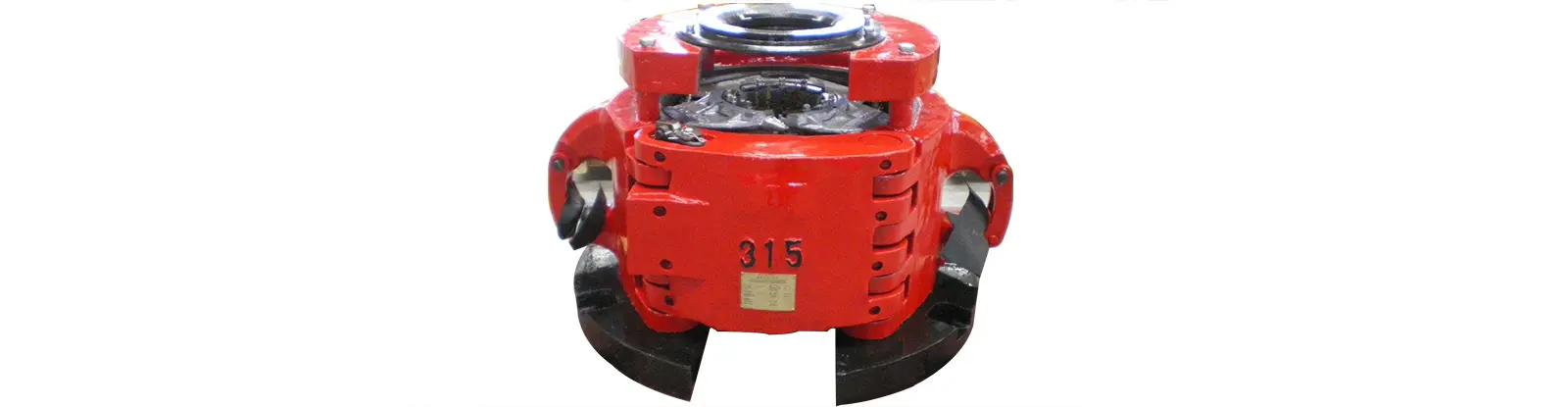

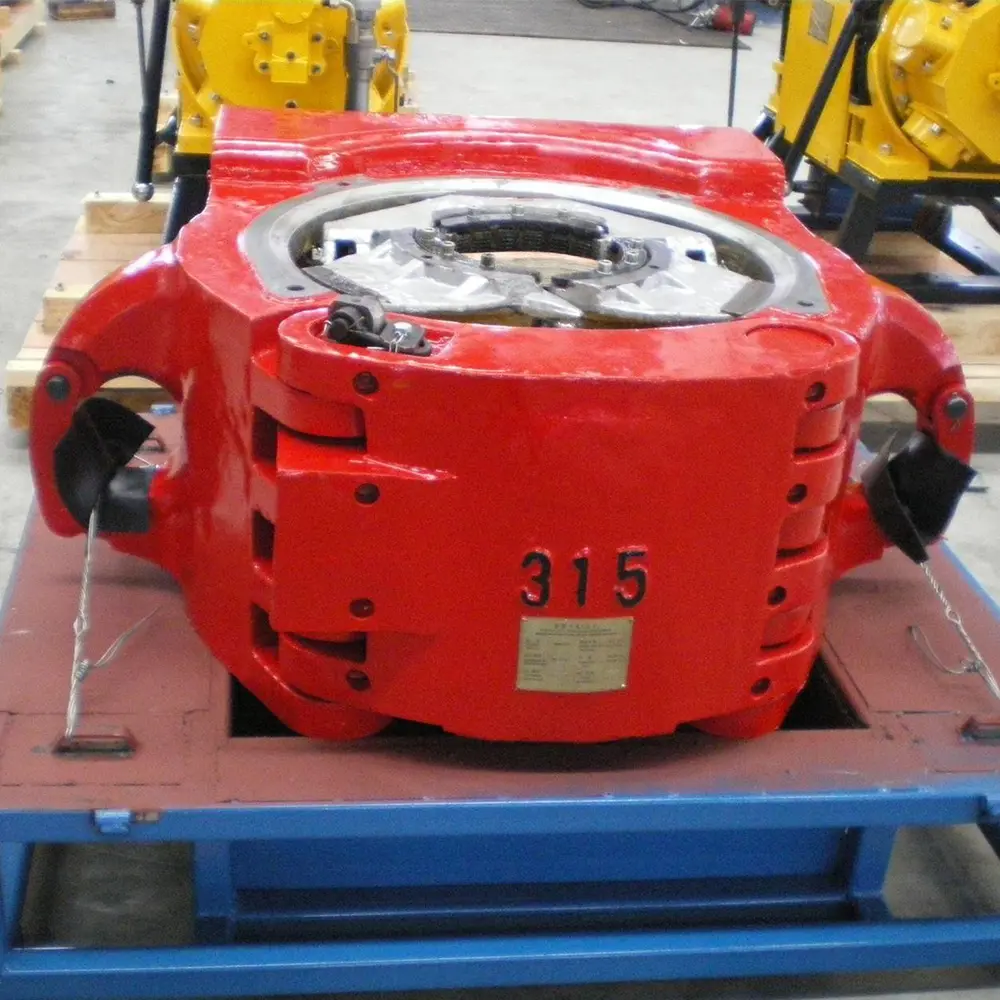

PNEUMATIC CASING ELEVATOR / SLIPS |
||||||
|
Model |
QD622-450 (API500) |
QD340-450 (API500) |
QD340-315 (API350) |
QD140-135 (API150) |
||
|
Applicable Range |
mm |
324-622 |
113-340 |
113-340 |
60-139.7 |
|
|
Rated Load |
kN |
4500 |
4500 |
3150 |
1350/900 |
|
|
Air Pressure |
MPa |
0.5-0.9 |
0.5-0.9 |
0.5-0.9 |
0.5-0.9 |
|
|
Size |
Elevator |
mm |
1886×1470×1070 |
1390×1290×915 |
1335×1040×806 |
990×730×550 |
|
Slip |
mm |
1886×1470×970 |
1390×1290×970 |
1335×1040×872 |
810×730×560 |
|
|
Weight |
kg |
12000 |
9900 |
7550 |
1430 |
|
