API 7K Certified Safety Clamps for Tubular Operations
WA Series Safety Clamps

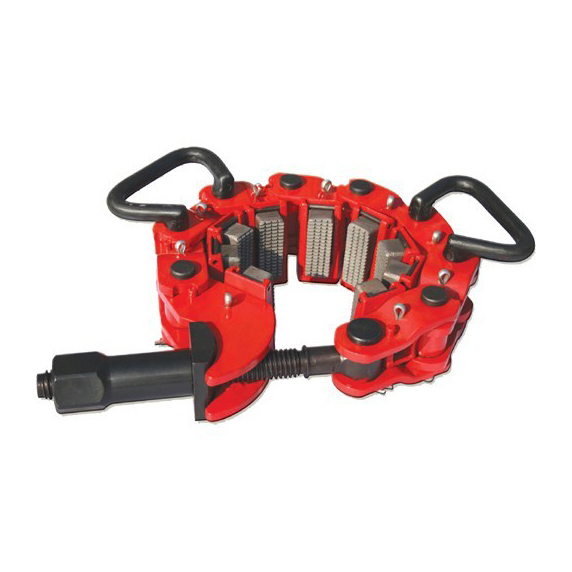

WA Safety Clamps: Used for handling flush joint pipes and drill collars, preventing accidental tubular drops during make-up or break-out of drilling equipment.
|
Model |
Size Range(in) |
Total Number of Links |
|
WA-C |
3-3/4 ~ 4-5/8 |
7 |
|
4-1/2 ~ 5-5/8 |
8 |
|
|
5-1/2 ~ 6-5/8 |
9 |
|
|
6-1/2 ~ 7-5/8 |
10 |
|
|
7-1/2 ~ 8-5/8 |
11 |
|
|
8-1/2 ~ 9-5/8 |
12 |
|
|
9-1/2 ~ 10-5/8 |
13 |
|
|
10-1/2 ~ 11-5/8 |
14 |
|
|
11-1/2 ~ 12-5/8 |
15 |
|
|
12-1/2 ~ 13-5/8 |
16 |
|
|
13-1/2 ~ 14-5/8 |
17 |
|
|
14-1/2 ~ 15-5/8 |
18 |
|
|
WA-T |
1-1/8 ~ 2 |
4 |
|
2-1/8 ~ 3-1/4 |
5 |
|
|
3-1/2 ~ 4-1/2 |
6 |

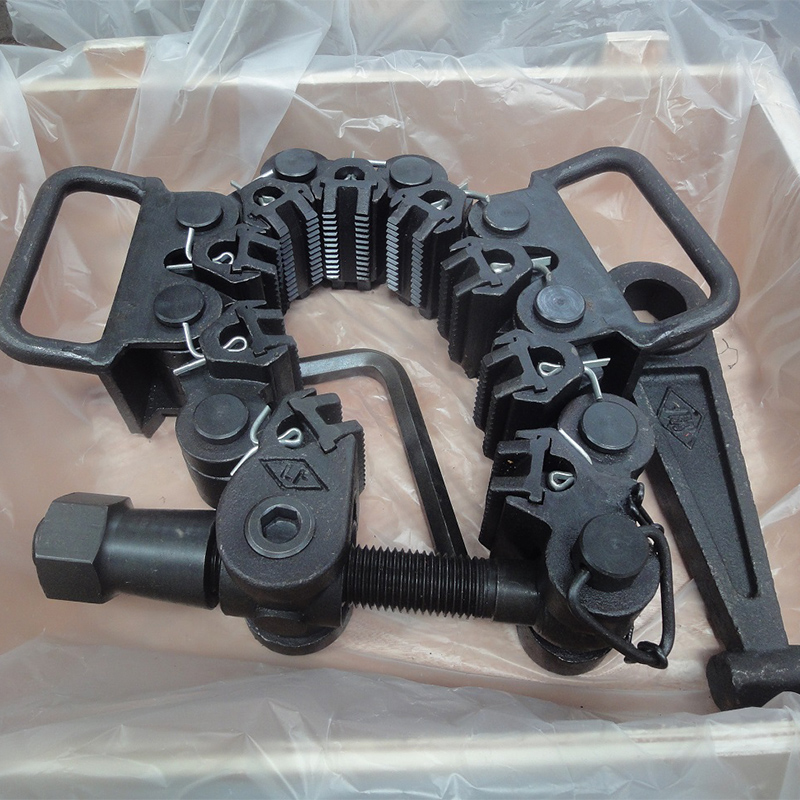

MP Safety Clamps: Adjustable by adding or removing chain links, ideal for handling drill collars and flush joint pipes of varying diameters.
|
Type |
Pipe O.D(in) |
No. of Chain Links |
|
MP-S |
2-7/8 ~ 4-1/8 |
7 |
|
4 ~ 5 |
8 |
|
|
MP-R |
4-1/2 ~ 5 5/8 |
7 |
|
5-1/2 ~ 7 |
8 |
|
|
6-3/4 ~ 8-1/4 |
9 |
|
|
8 ~ 9-1/4 |
10 |
|
|
9-1/4 ~ 10-1/2 |
11 |
|
|
MP-M |
10-1/2 ~ 11-1/2 |
12 |
|
11-1/2 ~ 12-1/2 |
13 |
|
|
12-1/2 ~ 13-5/8 |
14 |
|
|
13-5/8 ~ 14-3/4 |
15 |
|
|
14-3/4 ~ 15-7/8 |
16 |
|
|
MP-L |
15-7/8 ~ 17 |
17 |
|
17 ~ 18-1/2 |
18 |
|
|
18-1/8 ~ 19-3/8 |
19 |
|
|
MP-XL |
19-3/8 ~ 20-3/8 |
19 |
|
20-3/8 ~ 21-1/2 |
20 |
|
|
21 ~ 22-5/8 |
21 |
|
|
22-5/8 ~ 23-3/4 |
22 |
|
|
23-3/4 ~ 24-7/8 |
23 |
|
|
24-7/8 ~ 26 |
24 |
|
|
26 ~ 27-1/8 |
25 |
|
|
29-3/8 ~ 30-1/2 |
28 |
|
|
35 ~ 36 1/8 |
33 |
