API 7K Certified Oilfield Spiders for Tubular Handling
These spiders can be operated manually, pneumatically or hydraulically. Pneumatic and hydraulic spiders are designed to reduce manual labor and improve operation efficiency.
Product Range
Product features
Product Specifications

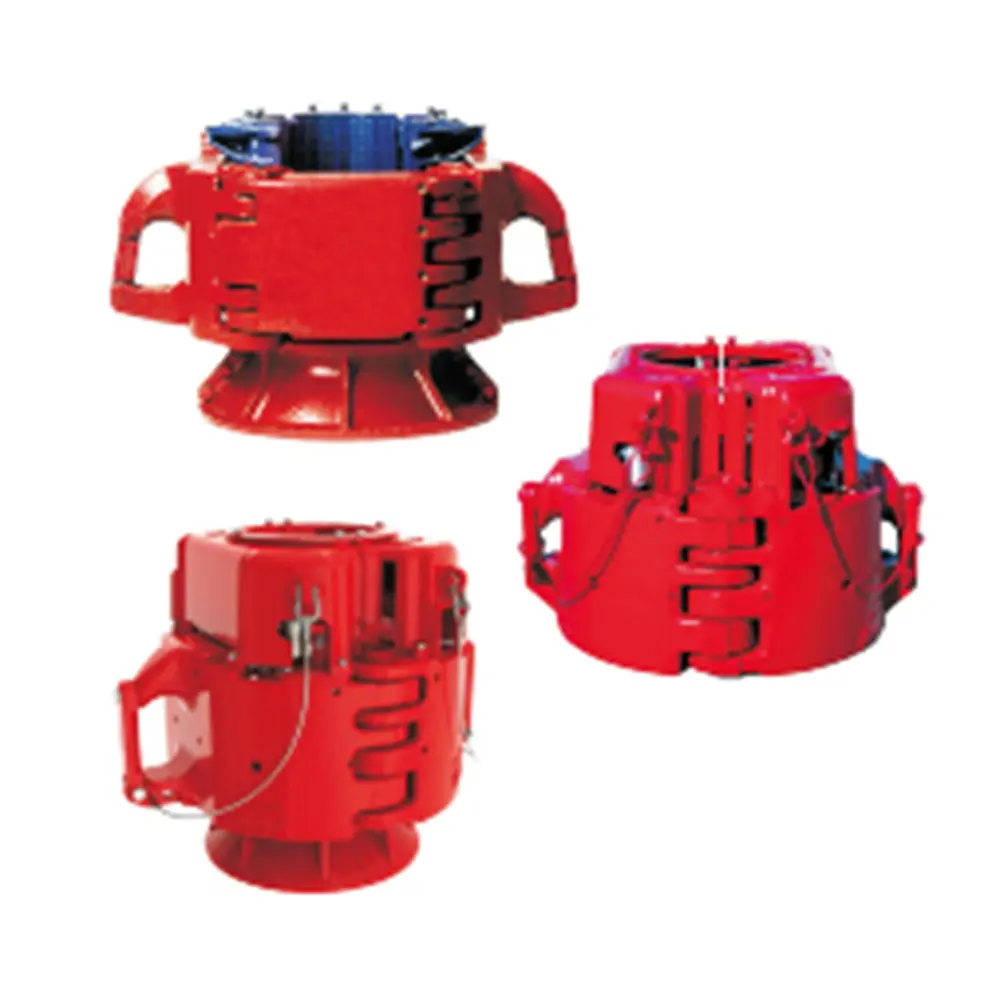

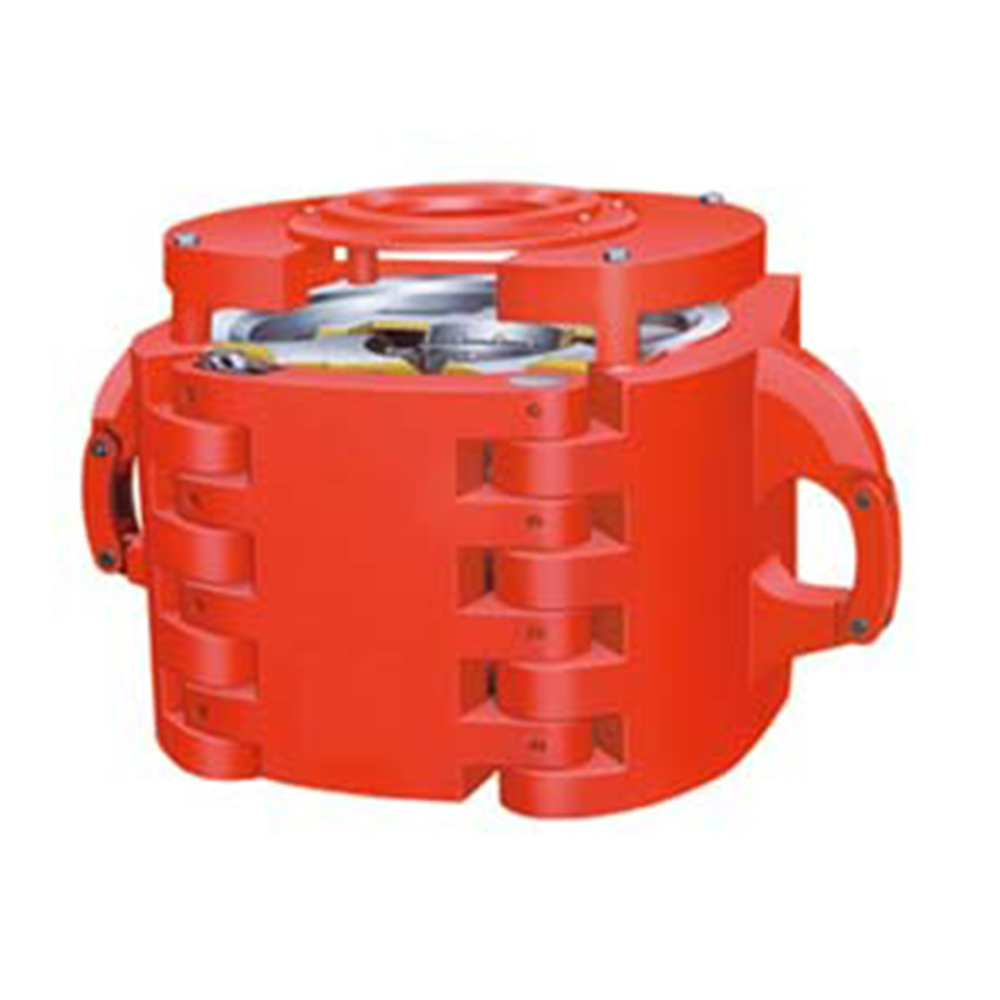

Elevator Spider：They are mechanized tools with air operating. They can handle casings up to 24-1/2″.
|
Model |
Applicable diameter of tubular(in) |
Rated capacity |
Work pressure |
Max pressure |
|
(tons) |
(MPa) |
(Mpa) |
||
|
SE150 |
2-3/8″ ~ 5-1/2″ |
150 |
0.6-0.8 |
1 |
|
SE350 (14) |
4″ ~ 14″ |
350 |
0.6-0.8 |
1 |
|
SE500 (20) |
16″ ~ 20″ |
350 |
0.6-0.8 |
1 |
|
SE500 (14) |
4″ ~ 14″ |
500 |
0.6-0.8 |
1 |
|
SE500 (24-1/2) |
16″ ~ 24-1/2″ |
500 |
0.6-0.8 |
1 |
|
SEB350 |
4-1/2“ ~ 13-3/8″ |
350 |
0.6-0.8 |
1 |

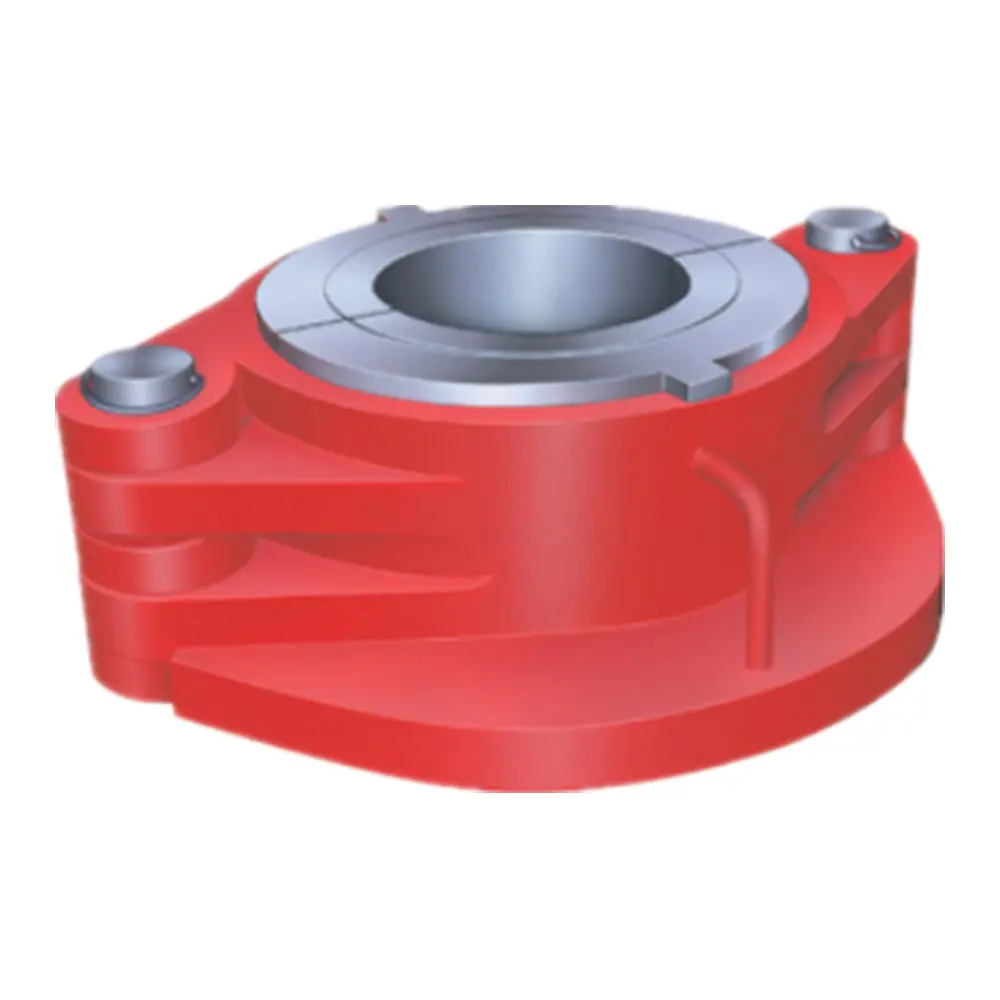

Tubing Spiders:
|
Model |
Applicable diameter |
Rated capacity |
|
of tubular (in) |
(short tons) |
|
|
TS3-1/2″-100 |
1.05 ~ 3-1/2″ |
100 |
|
TS5-1/2″-100 |
2-3/8″ ~ 5-3/4″ |
100 |

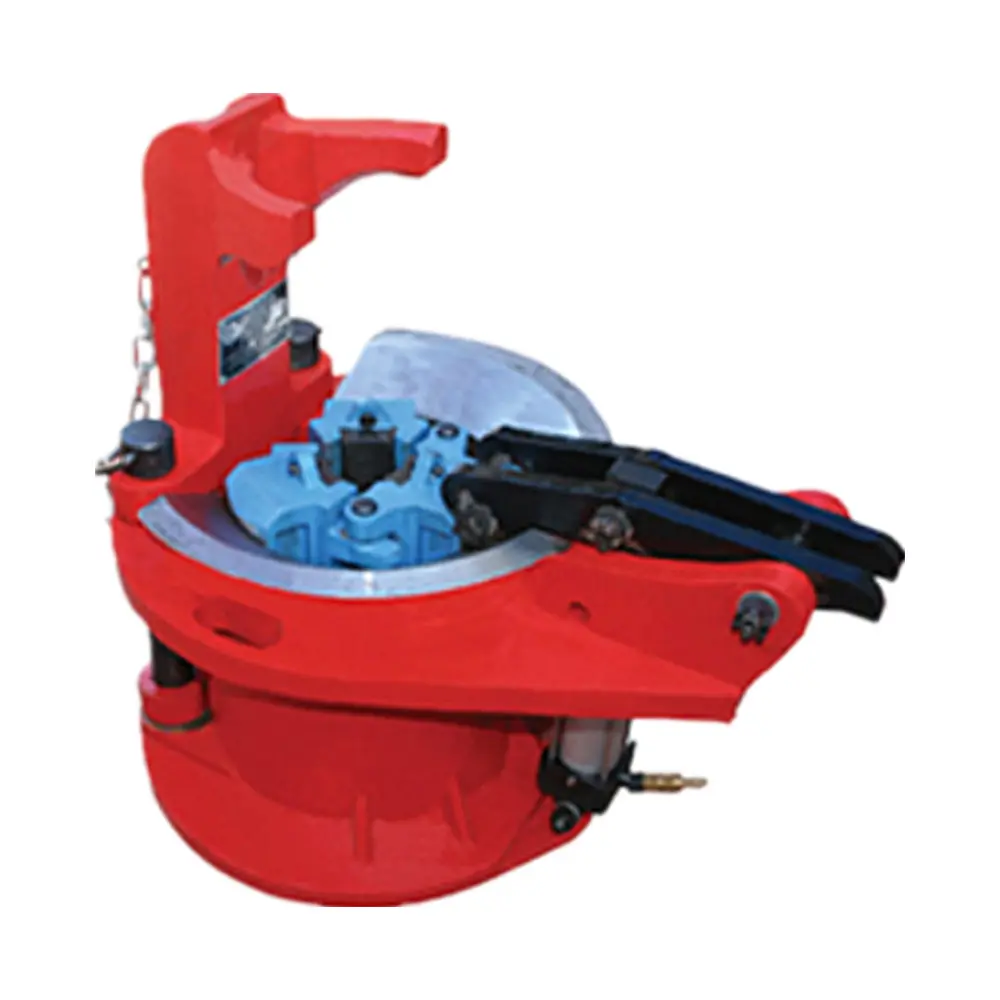

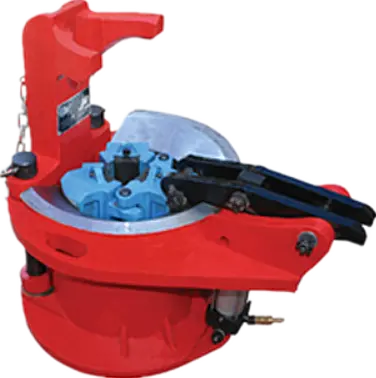

Pneumatic spiders
Type C/CHD/HD/E Pneumatic spiders are utilized to handle drill pipe and tubing in oil well repairing
|
Type |
Slip Body Size(in) |
Pipe Size（in） |
Working Load |
|
C |
1.315～3 1/2 |
3 1/2 |
80 tons |
|
3 1/2～4 1/2 |
4 1/2 |
||
|
4 3/4 |
4 3/4(Integral） |
||
|
5 |
5(Integral） |
||
|
5 1/2 |
5 1/2(Integral） |
||
|
CHD |
1.315～3 1/2 |
3 1/2 |
120 tons |
|
3 1/2～4 1/2 |
4 1/2 |
||
|
4 3/4 |
4 3/4(Integral） |
||
|
5 |
5(Integral） |
||
|
5 1/2 |
5 1/2(Integral） |
||
|
HD |
1.315～3 1/2 |
3 1/2 |
125tons |
|
3 1/2～4 1/2 |
4 1/2 |
||
|
4 3/4 |
4 3/4(Integral） |
||
|
5 |
5(Integral） |
||
|
5 1/2 |
5 1/2(Integral） |
||
|
E |
2 3/8～3 1/2 |
3 1/2 |
175 tons |
|
4～5 1/2 |
5 1/2 |
||
|
5 1/2～7 |
7 |
||
|
7 5/8 |
7 5/8（Integral） |
